ZTE ZXDU58 B900 DC Power System Max Output 90A AC Distribution Unit

Brand Name : ZTE

Model Number : ZXDU58 B900

Certification : CE , UL ,EN

Place of Origin : China

MOQ : 1 set

Price : 1200usd/pcs

Payment Terms : L/C, T/T

Supply Ability : 100 sets/Month

Delivery Time : 7-10 working days

Packaging Details : carton box

Brand : ZTE

Product Type : Power System

Output Voltage : -48VDC

Contact Now

ZTE ZXDU58 B900 DC Power System Max Output 90A AC Distribution Unit

Introduction

ZXDU58 B900 is a high frequency switch-mode DC power system designed by ZTE. It is an embedded power system with 19" 3U dimension. It is suitable to install together with telecommunication equipment such as: access equipment, mobile communication equipment, transmission equipment, etc. The system is designed capacity up to 90A with three 30A rectifier modules.

Application:


● GSM/CDMA mobile station
● Microwave repeater station
● Satellite BTS station
● Transmission equipment


System Technical Specifications
AC Input
Rated input voltage 220V AC single-phase (L/N/PE))
Input Voltage range
(phase to neutral)		 85 ~ 295V AC
Maximum input current 50A
Maximum input current 45 Hz – 66 Hz
Power factor ≥ 0.99 (with full load)
THD <2.8%
DC Output
Output voltage -48V DC nominal;
operating range -42~ -58V DC
Output current 90 A (full configuration)
Battery input 80A
Output breaker 4 breakers
Efficiency ≥ 93% (rated input; full load)
Protection OCP, OVP, UVP, OTP
Safety standard IEC60950 standards
Environment Requirement
Operating temperature –5°C ~ 45°C
Storage temperature –40°C ~ 70°C
Relative humidity 10% to 90%
( 40% to 60% recommende)
Dimensions and weight
Dimensions (H x W x D) 132.5mm×482.6mm×319mm
Weight (without rectifier) 18.9kg

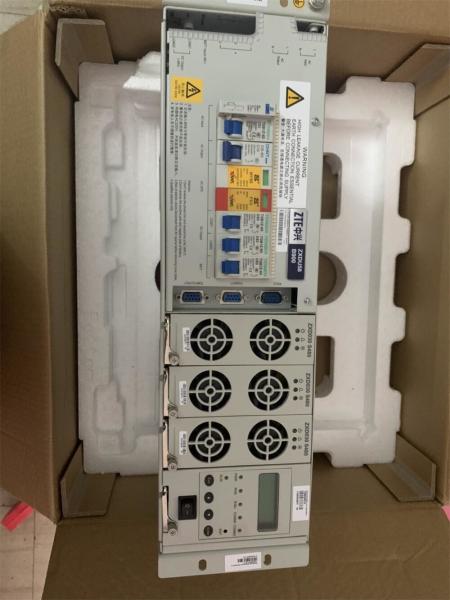

ZTE ZXDU58 B900 DC Power System Max Output 90A AC Distribution Unit
